Three transparent paths into GT Synthesis

Each signature example isolates one central idea so that the reader can focus on PDBFs and Completion Optimization rather than application complexity.

01

Paper I

OR–XOR: one don’t-care, two implementations

The PDBF has one unspecified output. Completing it with 0 produces XOR; completing it with 1 produces OR. Both are legal, but OR is structurally simpler.

00 → 0
01 → 1
10 → 1
11 → X
The quality of the final circuit depends not only on logic optimization, but also on the selected completion.
02

Paper I

7SDD: explicit area–depth trade-offs

MethodAIG AND NodesLevels
Synopsys324
GT minimum depth184
GT balanced155
GT minimum nodes146
03

Paper III

Three-state controller: the sequential OR–XOR example

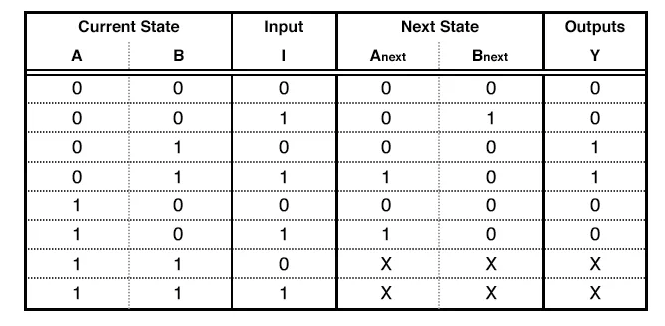

Three-state controller truth table
The two rows associated with unreachable state 11 are unspecified.

The controller has only two unreachable state/input combinations, yet GT finds a complete 3-output implementation with 4 gates, 2 levels, and 11 wires.

MethodGatesLevelsWires
ABC + deepsyn7317
ABC + transtoch6415
GT4211
Download PLADownload three PLAs

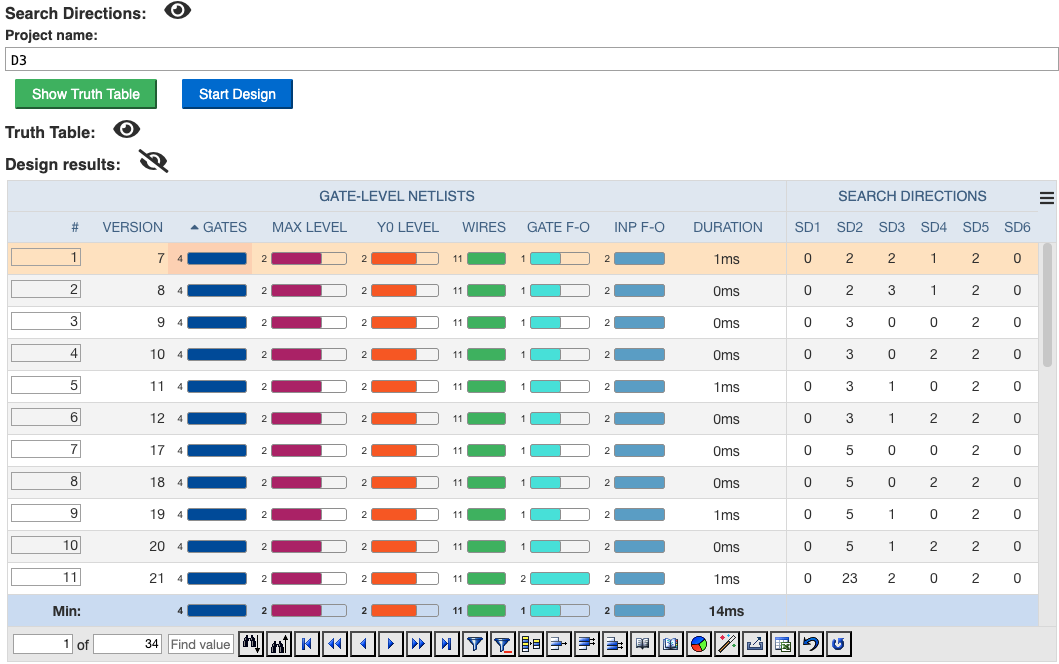

GT results for complete three-output controller
GT found 34 versions with the same measured optimum.
